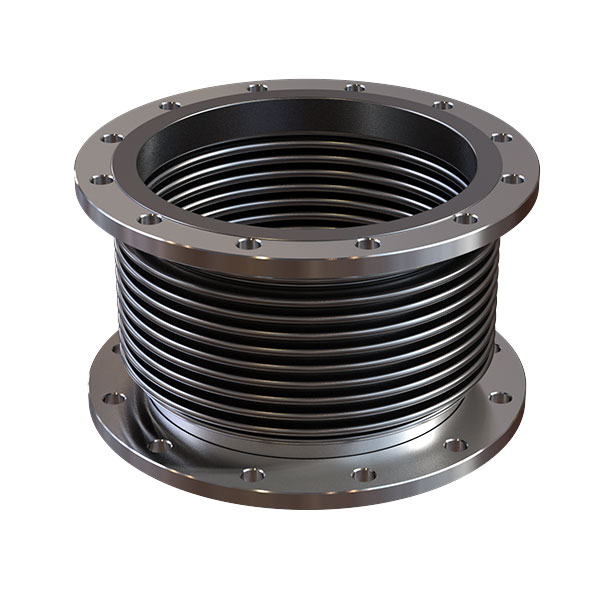

Balance VIII DN80-1600

The Balance VIII is a relatively short stainless steel expansion joint with rotating flanges. It is used to accommodate axial movements and lateral misalignments in piping systems in situations with limited installation space. Due to its double-ply bellows and rotating flanges, this compensator is still able to compensate relatively large movements. The Balance VIII is supplied at pre-stressed length to reduce the reaction forces to the foundation in operating conditions (high temperature). The maximum operating temperature of the Balance VIII is +550 °C, the maximum working pressure 2,5 bar (120 °C).
