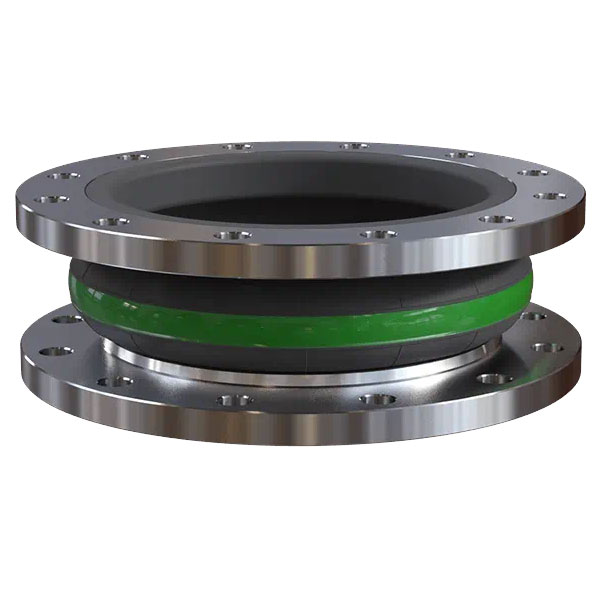

ERV Green DN25-600

The ERV Green rubber expansion joint is used for flexible connections in pipeline systems for chemicals, acids, alkalies, and chemically aggressive wastewater. The flanges of the ERV Green are rotating and standard available in DIN PN10 and PN16. The maximum working pressure is 16 bar or 10 bar for larger diameters. The operating temperature of this expansion joint ranges from -20° to 100 °C. Additionally, the ERV green can also be used for applications with oil-contaminated air with temperatures up to 90 °C.
