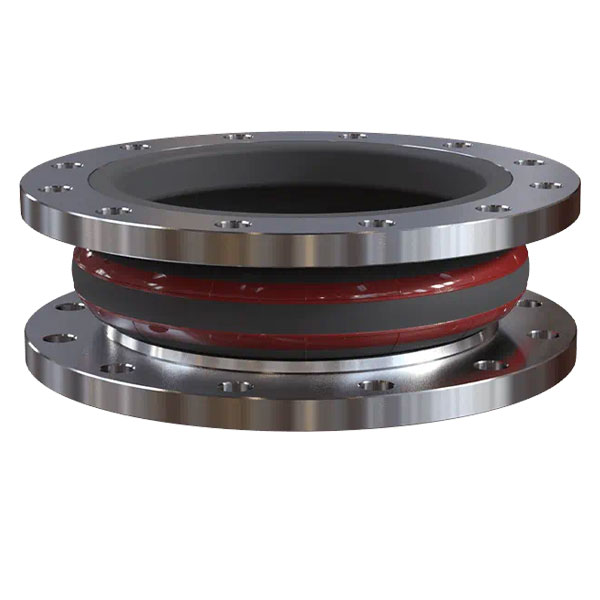

ERV Rotex DN25-1000

The ERV Rotex rubber expansion joint is used for flexible connections in pipeline systems for hot water, cooling water and hot air. It is not suitable for use with drinking water, oil-contaminated cooling water, oil-contaminated air and the continuous transport of steam. Its flanges are rotatable and standard available in DIN PN10 and PN16. The operating temperature depends on the medium and ranges from -40 °C to +130 °C. The maximum working pressure is 10 bar up to 100 °C, 6 bar up to 110 °C.
